EXH Submersible Dewatering Pumps(Amphibious)

EXH / 2~5HP / 4P

Sub. Dewatering Pump
EXH / 2~5HP / 4P

Sub. Dewatering Pump with Joint Pipe
EXH / Customized / 2P

High Head Type Sub. Dewatering Pump
Close-type Bronze Impeller

For EXH Model

EXH Submersible Dewatering Pump Brochure(50Hz)

EXH Submersible Dewatering Pump Brochure (60HZ)

Features

Silent operation and almost no vibration when running water pumps.
Robust structure and compact design with oil motor, double mechanical seal and close impeller for high efficiency.
It is an amphibious pump. Two (water delivery and extraction)in one economy design. After removing bottom strainer and connect with check valve, it can be applied as landed water pump.

Applications

Water extracting from streams, lakes, reservoirs,channel water, fishy pond.
Water supply and circulation for landscape and water features.
Aquaculture and agriculture water pumping and drainage.
Hydraulic engineering.

Operating Conditions

Ambient Temperature: Max.40℃
Liquid Temperature: 0~40℃
Submersion Depth: Max.10M
Solid passage: 8MM.
Working Pressure: Max.3bar.

Specification Ranges

Power: 2HP,3HP,5HP
Motor Protection: IP68
Insulation: F
Pole: 4P (2P/CUSTOMIZED)
Voltage:
1phase 220V*60HZ; 3phase 220 or 380V*60HZ
1phase 220~240V*50HZ ; 3phase 380~415V*50HZ
Discharge: 2",3”,4",5”
Max.Head: 15M
Max.Capacity: 2000 LPM ( 120M³/Hr)

Performance Curves and Specification(60Hz)

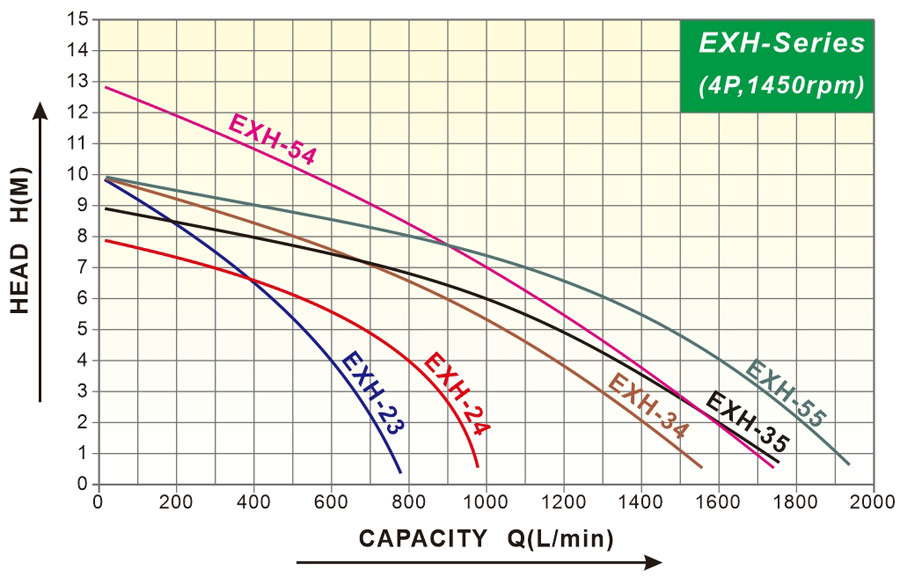

Performance Curves and Specification(50Hz)

How to use the EXH pump on the ground?

EXH is normally installed underwater. If it is necessary to change it to a land-based pump due to site environmental factors: 1. Remove the stainless steel filter at the bottom 2. Install a special base joint 3. Connect the bottom to the corresponding flange and connect to the PVC pipe of the corresponding diameter. The length of the pipe is not More than 4 meters 4. Be sure to install a bottom valve 5. Before starting operation, the pump must be filled with water.
