UP Inverter Control Booster Pump System(Duplex/Multiplex)

  • UP-ECDL (With H.M.I.)
    ECDL Vertical Multi-stage Pump/60L Tank/2"~4"
  • UP-ECDL (Customized / SUS Pipe)
    Installed Outdoor→With Motor Protetion Cover
  • UP-ECDL (Customized / SUS Pipe)
    Installed Outdoor→With Motor Protetion Cover
  • UP-ECDL (Customized)
    With Water Tank→To avoid dry-running
  • UP-SQD (1~10HP)
    SQD Self-priming Pump/60L Pressure Tank/2"~4"
  • UP-SQD (Customized)
    With Water Tank→To avoid dry-running
    • UP-ECM(1~3HP)
      ECM Multi-stage Pump/60L Pressure Tank/1.5"~3"
    • UP-ECM(1~3HP)
      ECM Multi-stage Pump/20L Pressure Tank/1.5"~3"
    • UP-ECM(Custom-SUS Pipe&Valve)
      ECM Multi-stage Pump/60L Pressure Tank/1.5"~3"
    • UP-ECM(Custom-SUS Pipe)
      ECM Multi-stage Pump/20L Pressure Tank/1.5"~3"
    • UP-ECA
      ECA SUS Centrifugal Pump/60L Tank/2"~3"
    • UP-ECA(Custom-SUS Pipe&Valve)
      ECA SUS Centrifugal Pump/60L Tank/2"~3"
    • UP-WZ (Custom/High Pressure)
      WZ Multi-stage Pump/100L Pressure Tank
    • UP-ETS (Customized)
      ETS In-line Pump/20L Pressure Tank/2"~3"
      • UP-CP(1~3HP)
        CP Centrifugal Pump/20L Pressure Tank/1.5"~3"
      • UP-CP(5~10HP)
        CP Centrifugal Pump/60L Pressure Tank/3"~4"
      • UP-CP(15~20HP)
        CP Centrifugal Pump/60L Pressure Tank/3"~6"
      • UP-CP(15~20HP)
        CP Centrifugal Pump/60L Pressure Tank/3"~6"
      • UP-CPS (1~3HP)
        CPS SUS Centrifugal Pump/60L Tank/2"~3"
      • UP-CPS (Custom / SUS Pipe&Valve)
        CPS SUS Pump/1~3HP/60L Tank/2"~4"
      • UP-CPS (Custom / SUS Pipe&Valve)
        CPS SUS Pump/5~10HP/60L Tank/3"~4"
      • UP-CPS (Custom/SUS Pipe&Valve/Included Inlet pipeline)
        CPS SUS Pump/5~10HP/60L Tank/3"~4"
        • 3UP-ECM(1~5HP) Triplex
          ECM Multi-stage Pump/60L Pressure Tank/2"~4"
        • 3UP-ECDL(1~20HP) Triplex
          ECDL Vertical Pump/60~100L Pressure Tank/2"~6"
        • 3UP-CPS(1~10HP) Triplex /SUS Pipe
          CPS SUS Centrifual Pump/60~100L Tank/2"~4"
        • 4UP-CP(1~10HP) Quadruple
          CP Centrifugal Pump/60~100L Tank/2"~6"
        • 4UP-ECDL(1~10HP) Quadruple
          ECDL Vertical Multi-stage Pump /60~100L Tank/2"~6"
          UP Inverter Control Booster Pump System Brochure (50HZ)
          UP Inverter Control Booster Pump Systems Brochure (60HZ)

          Features

          1. Stable water pressure while using hot shower.
          2. No water hammer, improve start/off frequency.
          3. Low noise and smooth operation. The system will adjust motor speed automatically, according to demand of capacity. It can save energy resources and uplift performance.
          4. Choose appropriate capacity of pressure tank, types of water pumps, quantities of inverter, and operation approach.
          5. Dry-running detection. It will turn off automatically once no water occurs to avoid motor burn out.
          6. No water tank, easy to install, reduce the cost of maintenance.
          7. Adopting high quality brand “DELTA” inverter, high efficiency, softly start/off functions.
          8. Alternate operation to extend life time of pumps.

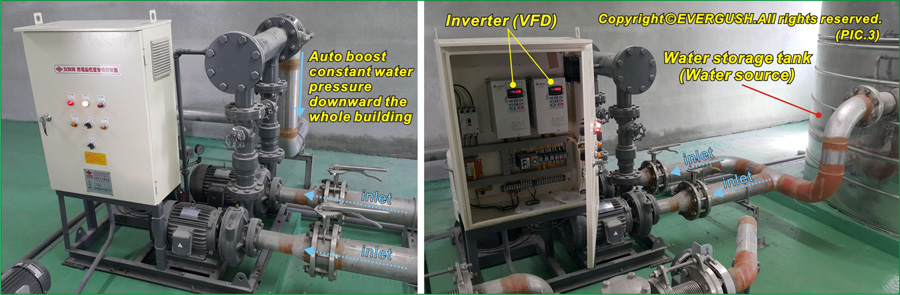

          9. Major installation ways- One is installed the pump system in the top floor or roof of the building, auto-boost water pressure downward whole building. Another is installed the pump system on the ground or basement, auto-boost water pressure to (upward) the building.(Please refer to below PIC.1~5)

          Installation

          Applications

          Auto boosting water constant pressure for IC manufacture industries, industrial pressure boosting system of plant,Condominiums,Hotels, Motels, restaurants, gas stations, apartments, factories, schools, parks, gymnasiums, villas, railway station, building sites,shopping mall,military camp,..etc.

          Operating Conditions

          1. Ambient Temperature: Max.40℃
          2. Liquid Temperature: 1~60℃
            (If delivering water temperature is over 60 ℃, we strongly recommend to replace for heat-resistant "Viton" mechanical seal)
          3. Clean, fresh water or no corrosive liquids without abrasives.
          4. Working Pressure: Max. 5~20bar.(depending on selected pumps)

          Specifications

          • Power: 1/2HP~20HP (Special Output requirement is available upon customer's request.)
          • Protection: IP54~IP55
          • Protection: E,B,F
          • Pole: 2P,4P
          • Voltage: 1phase 110;220V*60HZ(1HP~3HP); 3phase 220/380/440/660*60HZ
            1phase 220~240V*50HZ(1HP~3HP); 3phase 380~415V*50HZ
          • Suction/Discharge pipeline: 1” ~8”
          • Head: Max. 260 M
          • Capacity Range: 4~2160M³/hr.

          Special Notes
