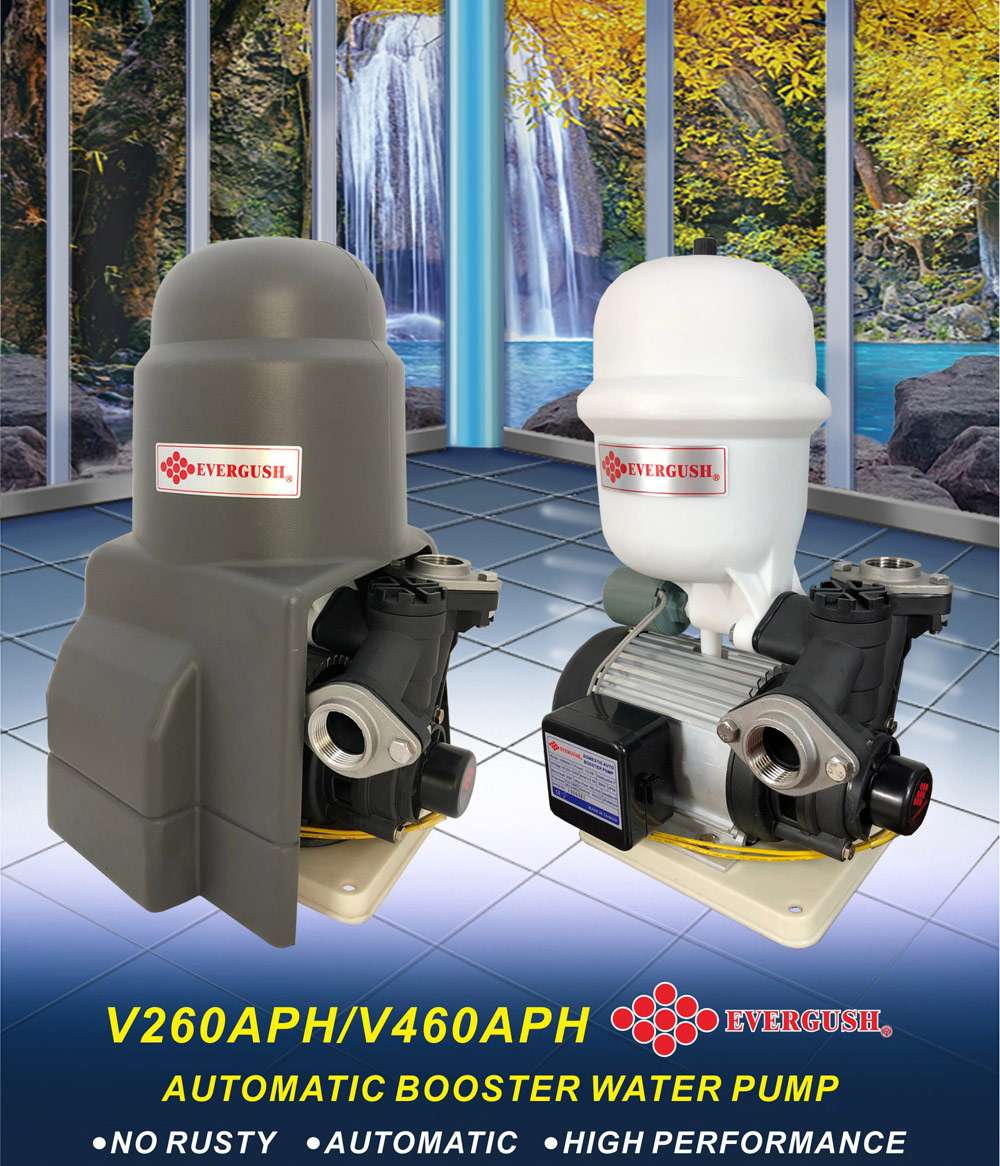

繁體中文 V-APH Auto Booster Plastic Pumps
-
V260APH/V460APH
-
V260APH/V460APH
-
V260APH/V460APH
-
V260APH/V460APH
-
V260APH/V460APH
-
For 1/4~1/2HP
FEATURES
- Auto boosting water pressure when water is consumed; Auto-stop when water is not consumed.

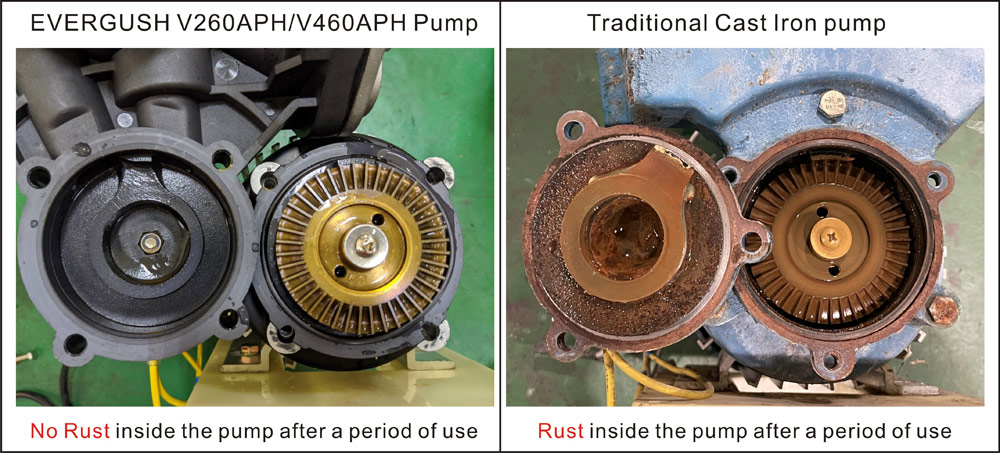

- The wetted parts are no rusty, to ensure clean using water.
- Diaphragm pressure tank is one-piece forming, with long service time and avoiding leakage.
- Equipped with motor overload protector and thermal cut-off device to prevent the motor from burning out due to abnormal conditions.

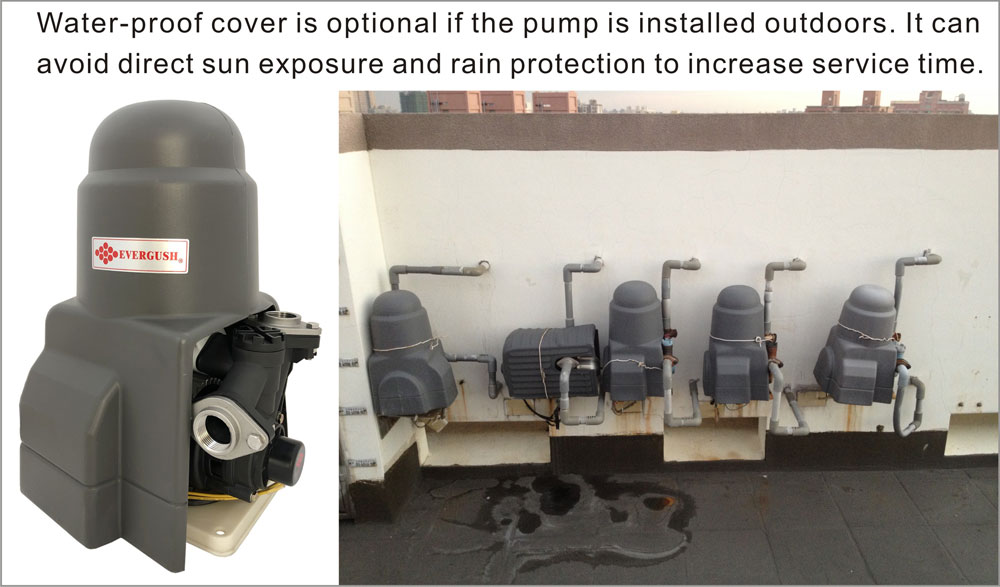

- Water-proof cover is optional if the pump is installed outdoors. It can avoid direct sun exposure and rain protection to increase service time.
- If the V-APH pump is installed outdoors, we recommend installing an EVERGUSH custom protective cover on the pump to protect it from wind, sun and rain.
IMPORTANT NOTES

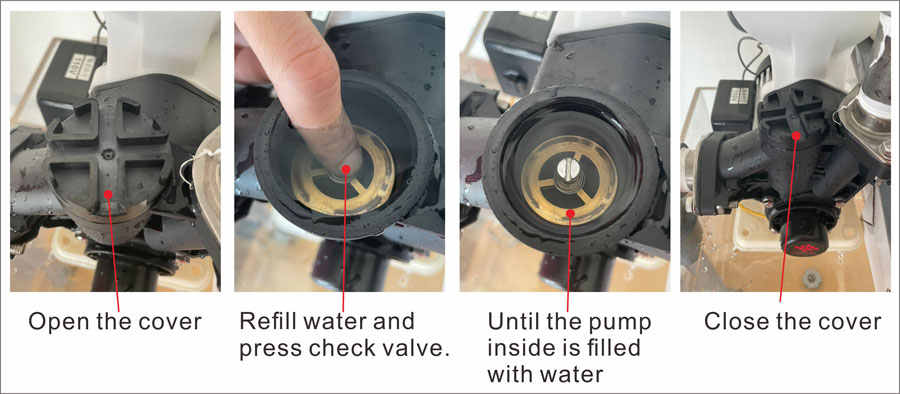

- If water source is below the V-APH pump, there's no positive water pressure from suction pipe. Installer needs to install foot valve and fill the pump with water before starting V-APH pump. Please refer to the method below to fill water.

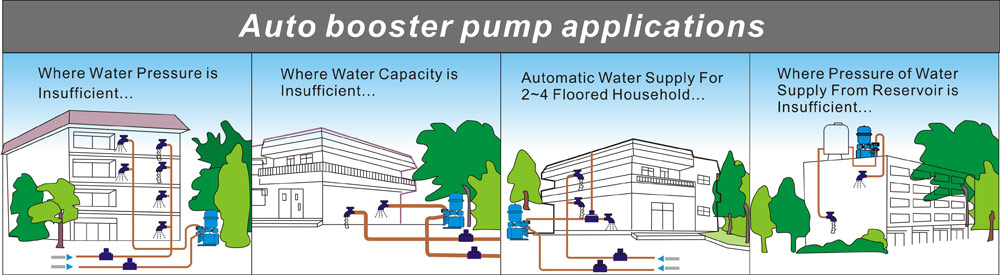

APPLICATIONS
- Water supply and pressure boosting in residential and commercial applications.
- Water pressure boosting for barber shop, restaurant,sprinkler systems, washing machine, residence, villa,house,..etc.

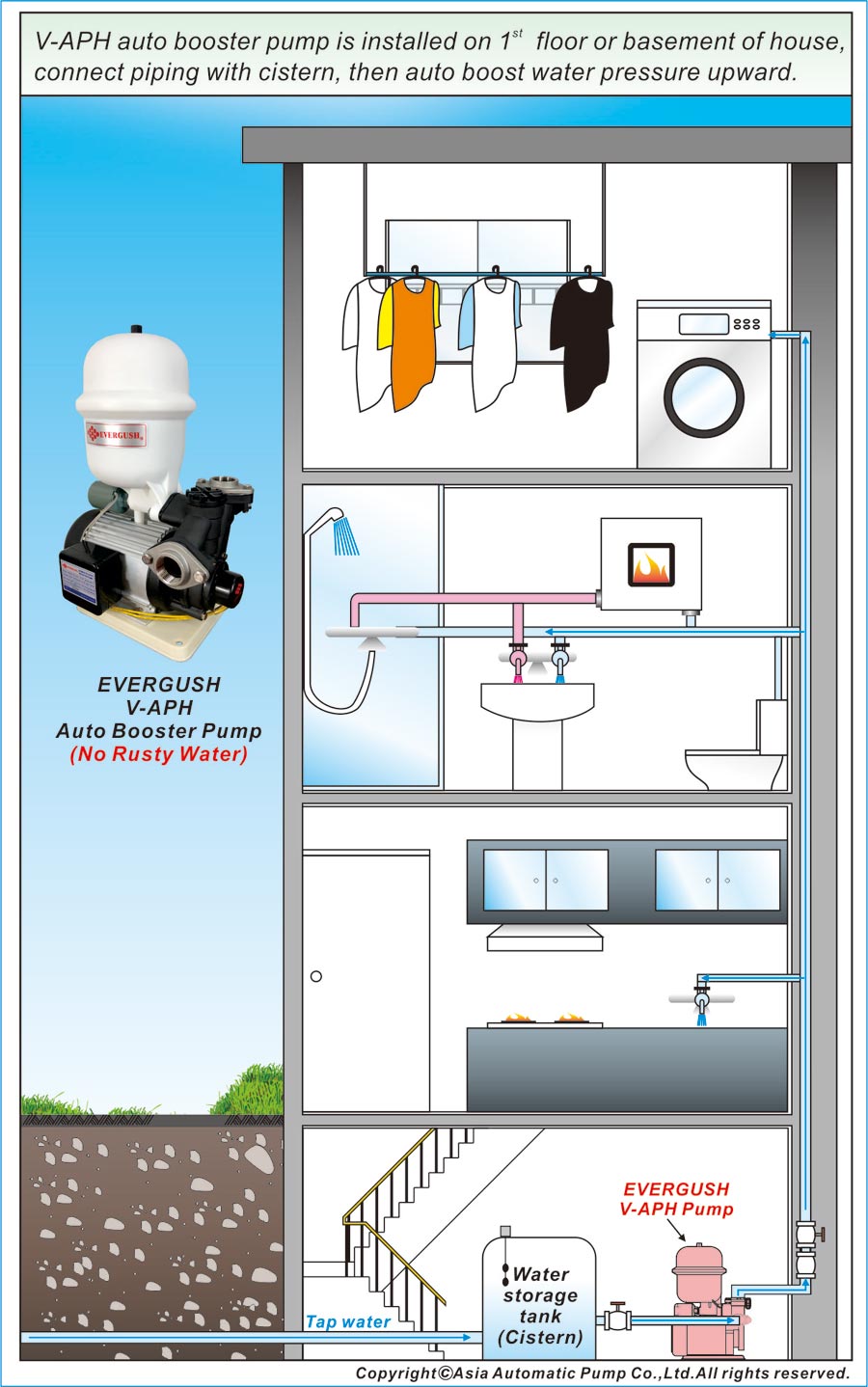

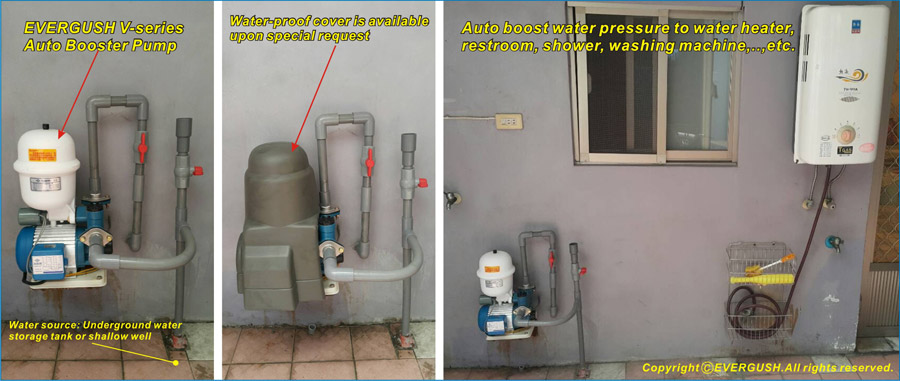

INSTALLATION
OPERATING CONDITIONS
- Ambient temperature: Max. 40℃
- Liquid temperature: 1~40℃
- Suction Head: Max. 6M
- The pump can't start when actual Inlet pressure is higher than pre-set activation pressure of the pump.
- Liquid: Tap water and clean water without solid matters.

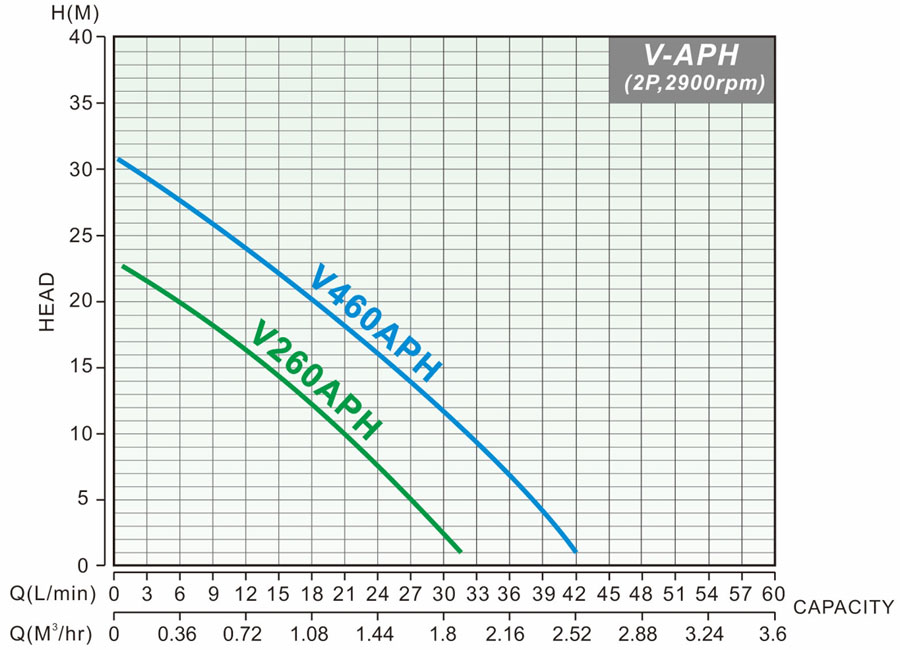

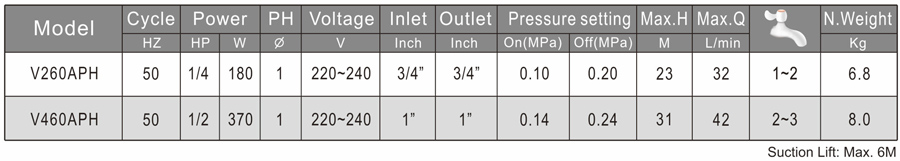

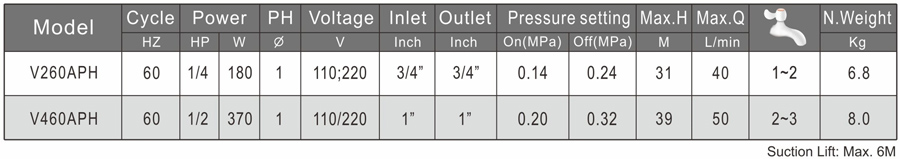

SPEC SUMMARY
- Power: 1/4 HP~1/2HP (0.18KW~0.37KW)
- Motor: IP54 / Insulation E,B
Only single phase: 1Phase 110V~240V(Built in thermal overload motor protector) - Cycle: 50Hz,60Hz

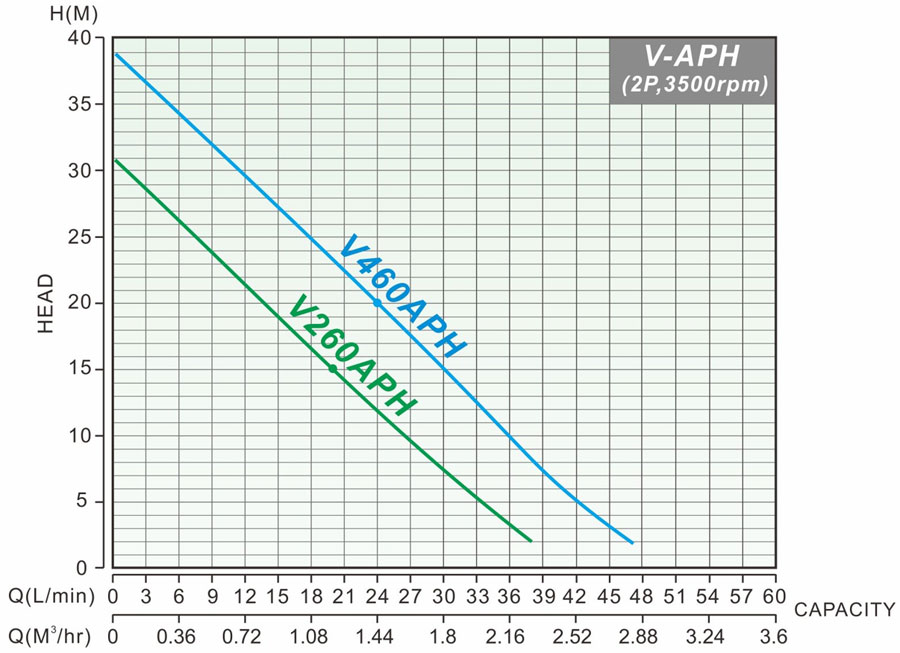

- Max. Head: 39M
- Max. Capacity: 50LPM
- Pressure set : 1.0~ 3.2 bar. (Depending on model you choose)
